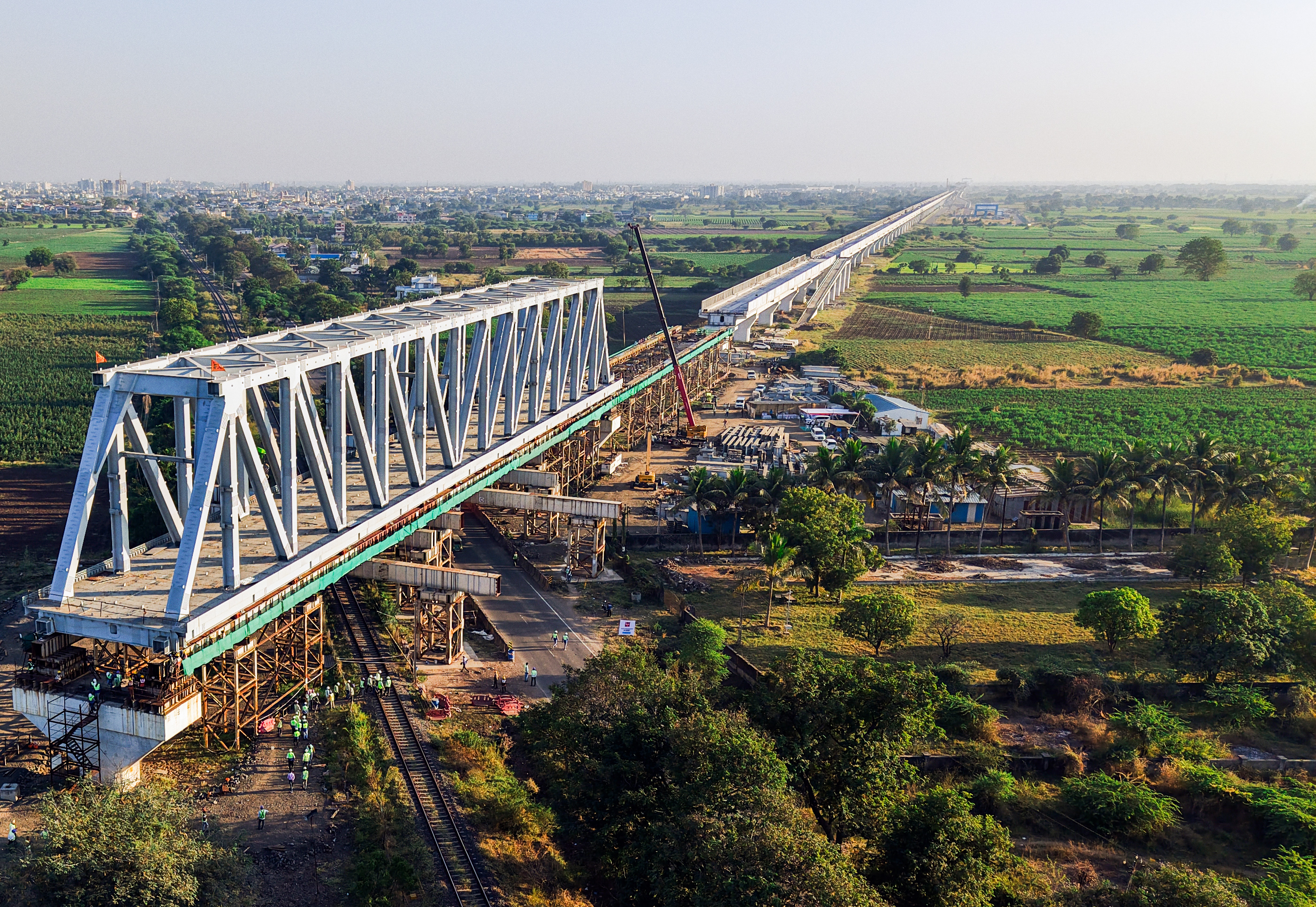

Mumbai Ahmedabad Bullet Train project has successfully completed the launching of 130 m span of a 230 m (130 +100) long steel bridge over National Highway-64 and Bharuch Dahej freight line of Indian Railway tracks near Kanthariya village, Bharuch district, Gujarat.

This continuous steel bridge features two spans of 130 m and 100 m. The 130 m span of this steel bridge was launched on 9th December 2025. Measuring approximately 18 m in height and 14.9 m in width, it weighs around 2780 metric tons. Fabricated at the workshop in Bhuj, Gujarat, the steel bridges are designed for a 100-year lifespan.

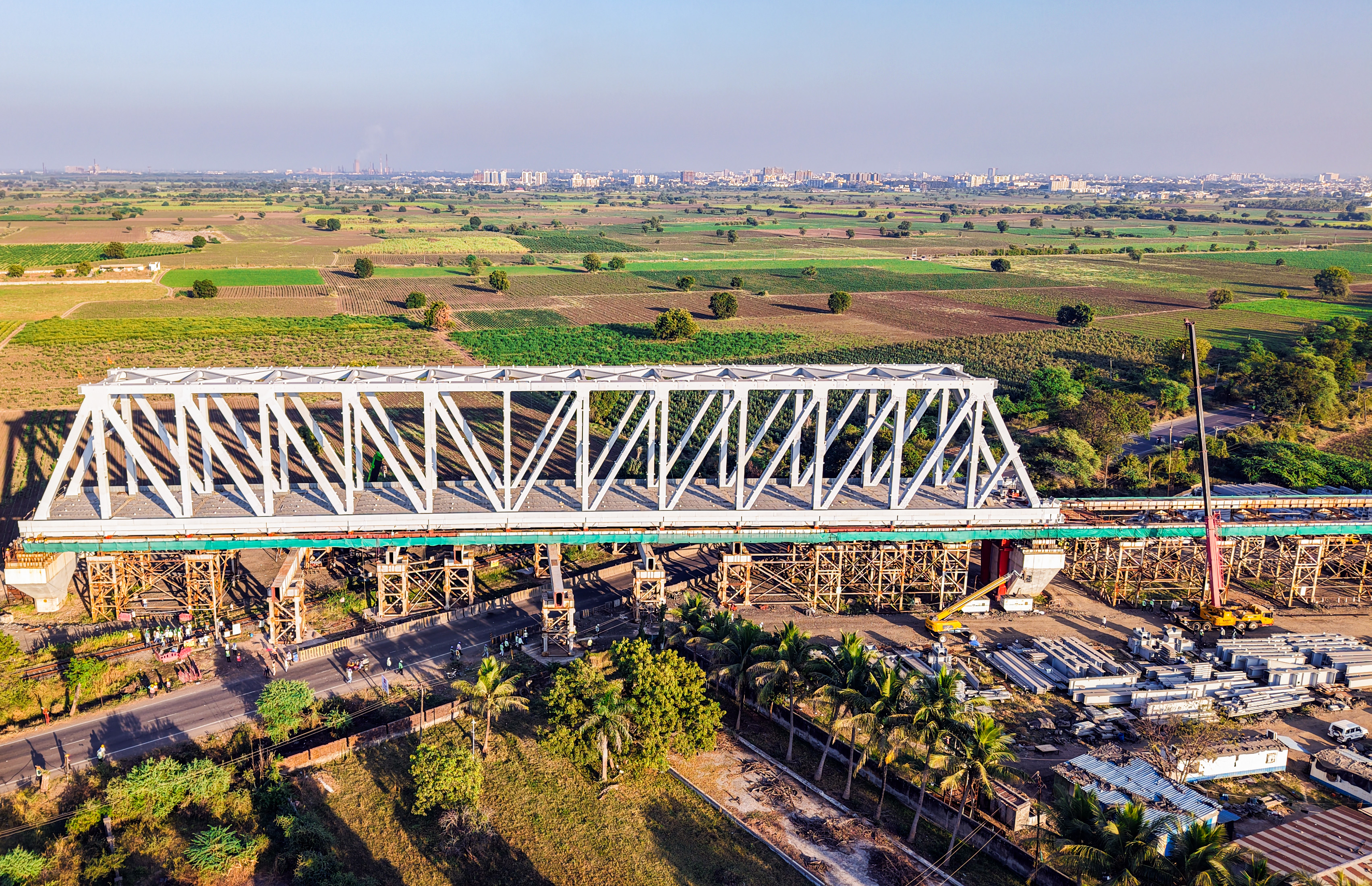

Constructed with approximately 1,22,146 Tor-Shear Type High Strength (TTHS) bolts, C5 system painting and metallic bearings, the bridge was assembled on temporary trestles at a height of 14 m above the ground and was pushed using two semi-automatic jacks, each capable of lifting 250 tons with mac-alloy bars.

The bridge launching was completed within 12 hours with intermittent blocks on freight tracks and road diversion on NH-64. These blocks were crucial to maintain safety and ensure precise execution during the phased launching process. All activities were carefully planned to minimize disruption to road users as well as ongoing freight operations.

Details of completed steel bridges

Sr. No.	Location	Length of the steel bridge (in meters)	Weight of the steel bridge (in MT)
1	Across National Highway 53, Surat, Gujarat	70	673
2	Over Vadodara-Ahmedabad main line of Indian Railways, near Nadiad, Gujarat	100	1486
3	Over Delhi-Mumbai National Expressway, near Vadodara, Gujarat	230 (130 + 100)	4397
4	Near Silvassa in Dadra & Nagar Haveli	100	1464
5	Over Western Railways, Vadodara, Gujarat	60	645
6	Over two DFCC Tracks and two Western Railways tracks, Surat, Gujarat	100, 60	2040
7	Over two DFCC tracks, near Vadodara, Gujarat	70	674
8	Over DFCC tracks near Bharuch, Gujarat	100	1400
9	Over NH-48, near Nadiad, Gujarat	2 x 100	2884
10	Over Railway Facility (Laundry) in Ahmedabad, Gujarat	60	485
11	Over Cadilla Flyover, Ahmedabad, Gujarat	70	670
12	Over NH-64 and Bharuch Dahej Freight line of IR, Bharuch, Gujarat	Span 1 : 130 m (completed) – 2780 MT Span 2 : 100 m (in progress)
